ROOFING PANELS
ROOFING PANELS
PUR/PIR sandwich roof panels combine good fire performance with minimal heat conductivity. These panels' energy-efficient PIR core improves fire safety while simultaneously lowering heating expenses. Because of their light weight, they require less money for assembly, freight, and supporting structures. Thermal resistance is greatly increased when these panels are used to insulate any residential or commercial space.
Among the many advantages of these panels are their ability to insulate both the underside and the roof. Since most residential roofs and business ceilings provide easy access for insulation work, installation is generally straightforward.
TYPE
PPGI, PPGL, Cement Board Finish,
Veneer Finished, ACP Finish, Customised
CHEMICAL GRADES
B3/ B2 Grades available
THICKNESS
30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm, 150mm,
PANEL SPECIFICATIONS
ETPL1000 Roof | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
Weight (Kg/m2) | 7.9 | 8.5 | 9 | 9.2 | 10 | 11.2 | 11.2 |
R-Value (W/m2K) | 1.4 | 2 | 2.3 | 2.7 | 4 | 4.5 | 5.5 |
U-Value (W/m2K) | 0.7 | 0.5 | 0.41 | 0.33 | 0.25 | 0.22 | 1.8 |
Overall Thickness (mm) | 68 | 78 | 58 | 68 | 88 | 138 | 158 |
Panel Thickness (mm) | 30 | 40 | 50 | 60 | 80 | 100 | 120 |
ALUMINIUM FOIL PANEL
Elements produces environmentally friendly panels that, even in cold weather, have a high strength-to-weight ratio and excellent thermal insulation capabilities. Because sandwich PUF panels with aluminum foil are so affordable, they are frequently used in a variety of industries to construct walls and roofs, especially under-deck roofing. Aluminum foil with a 0.08 mm thickness has been used to finish the interior side of the insulated panel.
APPLICATIONS
-
Commercial and industrial building.
-
Logistics center
-
Offices
-
Rural constructions
-
Sports hall
This PIR/PUF panel combines a low thermal conductivity ratio and good heat resistance, together with available thicknesses up to 150 mm. Roof panels with PIR rigid foam cores and steel shells in different structures and surfaces. It is an ideal solution for roofing as well as for facades with the ultimate requirements for energy efficiency. Roof sandwich panels division PUR is designed to fulfill several functions. The most important are: resistance to atmospheric factors, thermo insulation, aesthetics, durability, functionality and universality. The continuous core is an additional advantage that improves the aesthetics of buildings, bungalows, resorts, etc.

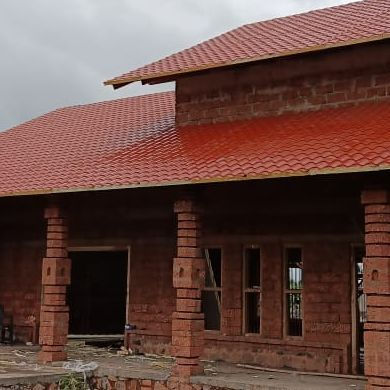

TILE PROFILE ROOF PANEL
