SMART COOL PANEL LINE

The Continuous Sandwich Panel Line is a true testament to our commitment to engineering excellence. The dynamic landscape of the PUF Panel demands cutting-edge solutions. This continuous line adds a huge upgrade to our existing manufacturing capacity, increasing it significantly.

Our continuous line has state-of-the-art capabilities like:
- Advance Patented Premixing Technology
- An astounding Manufacturing Capacity of 18 million square meters per year

Smart Kool Panel

Sandwich PUR / PIR panels' roof panels combine low thermal conductivity ratios and good fire performance. This energy-efficient PIR core panel saves on heating costs and increases fire safety. It is low on weight and hence offers savings on supporting structures as well as on freight and assembly costs. The ideal way to insulate any home or industrial premises and give them higher thermal resistance is to have them insulated with a particular roof insulation material.

It can give you multiple benefits, including application over the roof as well as under-roof insulation. The process of applying insulation material is comparatively easy, as most of the housing roofs as well as industrial ceilings have some access to insulation work.

TYPES

PPGI, PPGL, SS,

PANEL SPECIFICATIONS

Panel Thickness (mm)
U-Value (W/m2K)
R-Value (W/m2K)
Weight (Kg/m2)
30
0.7
1.4
1.2
40
0.5
2
1.6
50
0.41
2.3
2
60
0.33
2.7
2.4
80
0.25
4.5
4
100
0.22
4.5
4
120
0.18
5.5
4.8
150
0.14
6.8
6

CHEMICAL GRADES

B3/ B2/ PIR Grades available

THICKNESS

30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm, 150mm,

Smart Hidden Screw Wall Panel

Sandwich PUF panel with a concealed fixing method for high-quality industrial and commercial buildings, where good aesthetics are paramount. The special double labyrinth joint of this panel provides mechanical resistance and insulation superior to any other wall panel product of this kind.



The panel's external micro-V increases the aesthetic appeal of this panel, which can be oriented both vertically and horizontally as required. If the wind pressure on a wall sandwich panel is more than the allowed limit of panels, it is necessary to fix the sandwich panels with self-drilling screws on a metal net.



On ordinary panels, these screws are visible, but the hidden screw wall panels are designed so that the drilling screws are operated under the notch and tab and cause a tight and firm connection. Alfa hidden screw wall panels can be manufactured with various patterns and designs, like fine, corrugated, and coarse corrugated. Beside the designs, Alfa is presenting the hidden screw wall panel with a water fall design to the market that has great insulation, firmness and can be assembled horizontally and vertically as well.

Smart Insulated Roofing Panel

This PUR / PIR panel combines a low thermal conductivity ratio and good fire resistance, together with available thicknesses up to 150 mm. Wall panels with PIR rigid foam cores and steel shells in different structures and surfaces. It is an ideal solution for cold storage as well as for facades with the ultimate requirements for energy efficiency and fire safety. Wall Sandwich Panels Division PIR is designed to fulfill several functions. The most important are: resistance to atmospheric factors, thermo insulation, aesthetics, durability, functionality and universality. The continuous core is an additional advantage that improves the aesthetics of the building.

PPGI, PPGL, SS,

TYPES

Panel Thickness (mm)
Overall Thickness (mm)
U-Value (W/m2k)
R-Value (W/m2k)
Weight (kg/m2)
30
68
0.7
1.4
7.9
40
78
0.5
2
8.5
50
58
0.41
2.3
9
60
68
0.33
2.7
9.2
80
88
0.25
4
10
100
138
0.22
4.5
11.2
120
158
1.8
5.5
11.2

PANEL SPECIFICATIONS

B3/ B2 Grades available

CHEMICAL GRADES

30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm, 150mm,

THICKNESS

CONTINUOUS ROCKWOOL INSULATED PANEL

ELEMENTS TECHNOFAB is one of the leading Manufacturers & Supplier of Continuous Rockwool Insulated Panel in Pune, Pimpri, Bhosari, Talawade, Dehu, Maharashtra, India. Elements Technofab is the foremost Continuous Rockwool Insulated Panel Manufacturer Industry in India. These products consist of high-performance-based roof panels. Continuous Rockwool Insulated Panel surfaces come painted with adhesive paint, which makes them wear-resistant, alkali-resistant, and acid-resistant. Quite a few of its features, include offering optimum climate resistance, a non-fading and stripping paint finish, a core shaped by pressure at high temperatures to confirm the fire-resistant demand of the building, being light in weight and being easy to process make Elements Technofab the best Continuous Rockwool Insulated Panel manufacturer.

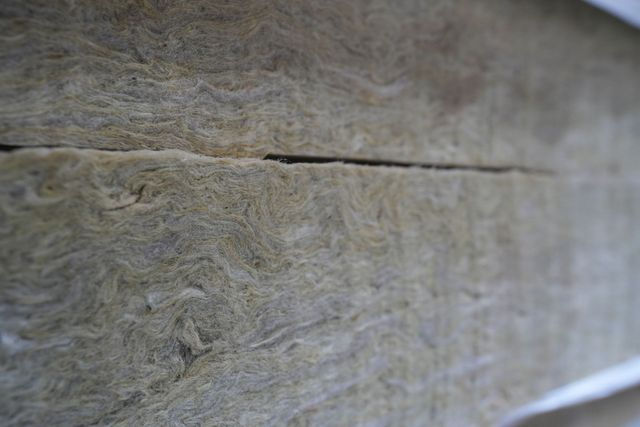

Continuous Rockwool Insulated Panel Insulation is a lightweight high density material, made with non-directional stone wool fibres delivering exceptional compression and tensile strength.


The excellent performance of rockwool insulation is commonly adopted for fire-resistance and noise reduction in buildings. Rockwool panels are widely used in commercial and industrial steel building construction for external walls, roofs, and ceiling panels.

Elements Technofab is a best quality Rockwool Panel Supplier and as the product is pre-fabricated in the factory, in various fast track construction projects these Rockwool panels have been used successfully.

  • Made of High Quality Stainless Steel

  • With Parking Brake, Lighter and Accessory

  • With 8 Switches

  • Sold individually

  • Warranty on the control panel against defects in workmanship and material from the date of purchase.

  • Continuous Rockwool Insulated Panels use aluminum framing in the walls, roof, and floor.

  • Continuous Rockwool Insulated Panel insulation is high-density core foam. Unlike batten insulation, core foam does not lose its r-value over time.

  • All Continuous Rockwool Insulated Panel are air-leveled when installing your walls and roof. This ensures that all Rockwool wings are electric and can be extended and retracted at the push of a button.

  • Continuous Rockwool Insulated Panel come with a water filtration system.

  • Continuous Rockwool Insulated Panel Mini Lites are prepped for portable solar panels.

SPECIFICATIONS OF A CONTINUOUS ROCKWOOL INSULATED PANEL

FEATURES OF CONTINUOUS ROCKWOOL INSULATED PANEL

  • Continuous Rockwool Insulated are light in weight and easy to process.

  • It offers low density and superior toughness.

  • It has a Multi-layer finish that provides for superior insulation and heat-insulation.

  • Easily available in a choice of different colors.
