WALL PUFF PANELS

PUR/ PIR Wall Panels

Sandwich PUR/PIR panels’ roof panels combine a low thermal conductivity ratio and good fire performance. This energy-efficient PIR core panel saves heating costs and increases fire safety. It is low on weight and hence offers savings on supporting structures as well as on freight and assembly costs. The ideal way to insulate any home or industrial premises and give them higher thermal resistance is to have them insulated with a particular roof insulation material.

It can give you multiple benefits, including application over the roof as well as under roof insulation. The process of applying insulation material is comparatively easy, as most of the housing roofs as well as industrial ceilings have some access to insulation work.

PPGI, PPGL, SS, Cement Board Finish, Veneer Finished, ACP Finish, Customized

TYPES

B3/ B2/ PIR Grades available

CHEMICAL GRADES

30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm, 150mm,

THICKNESS

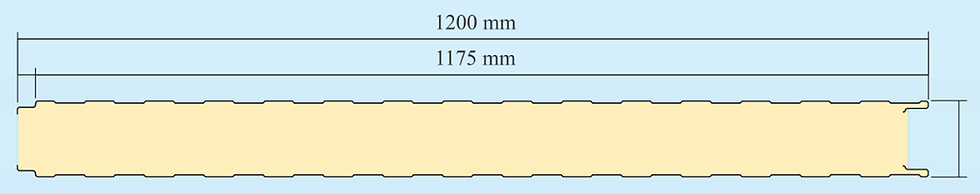

ETPL1200 CRP
1
2
3
4
5
6
7
8
Weight (Kg/m2)
1.2
1.6
2
2.4
3.2
4
4.8
6
R-Value (W/m2K)
1.4
2
2.3
2.7
4
4.5
5.5
6.8
U-Value (W/m2K)
0.7
0.5
0.41
0.33
0.25
0.22
1.8
1.4
Panel Thickness (mm)
30
40
50
60
80
100
120
150

HIDDEN SCREW WALL PANEL

Launching Soon..

Sandwich PUF panel with a concealed fixing method for high-quality industrial and commercial buildings, where good aesthetics are paramount. The special double labyrinth joint of this panel provides mechanical resistance and insulation superior to any other wall panel product of this kind.

The panel's external micro-V increases the aesthetic appeal of this panel, which can be oriented both vertically and horizontally as required. If the wind pressure on a wall sandwich panel is greater than the allowed limit of panels, it is necessary to fix the sandwich panels with self-drilling screws on a metal net.



On ordinary panels, these screws are visible but the hidden screw wall panels are designed so that the drilling screws are operated under the notch and tab and cause a tight and firm connection. Alfa hidden screw wall panels can be manufactured with various patterns and designed like fine corrugated and coarse corrugated. Beside the designs, Alfa is presenting the hidden screw wall panel with a water fall design to the market that has great insulation and firmness and can be assembled horizontally and vertically as well.

The corner panel is nothing but corner connections with the corner panels are lockable. It aims to ensure not even a single panel is wasted in assembly and provide ease of assembly. A specially designed corner panel ensures air tightness between panels and provides a uniform straight line. This allows high insulation and thus minimizes the energy consumption of Cold Air Warehouses. Infrastructure for every wiring installation inside the panel can be created (hidden installation application).

CORNER PANEL
